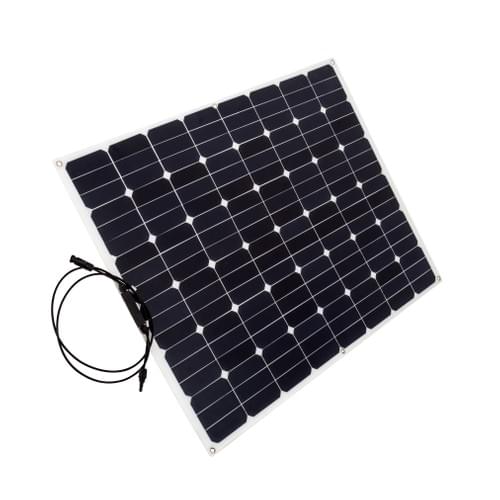

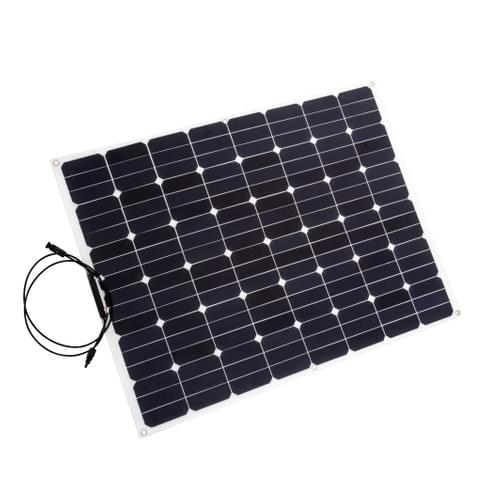

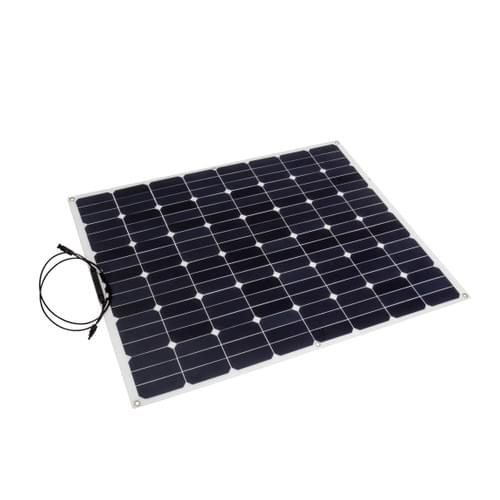

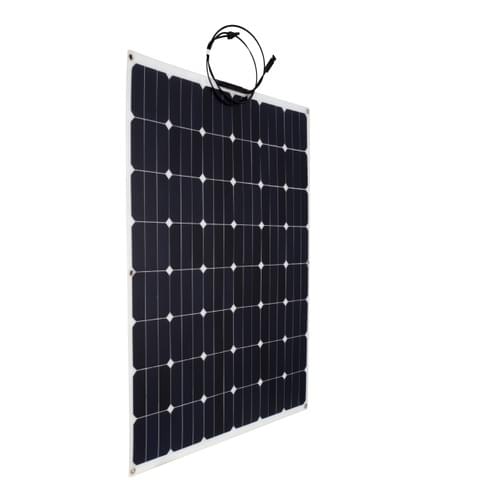

200w Semi-flexible Solar Panel
1)Semi-Flexible

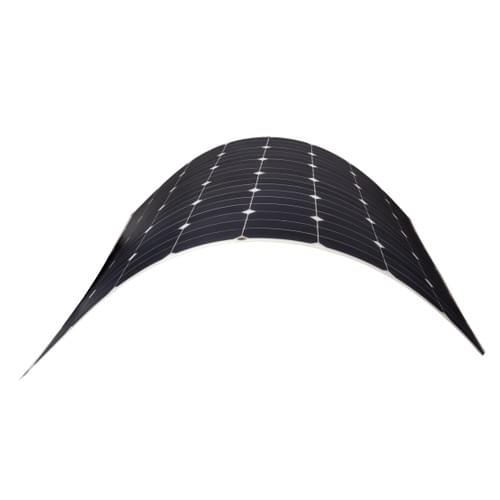

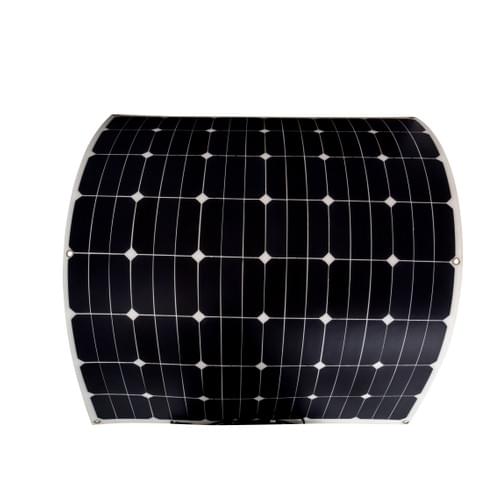

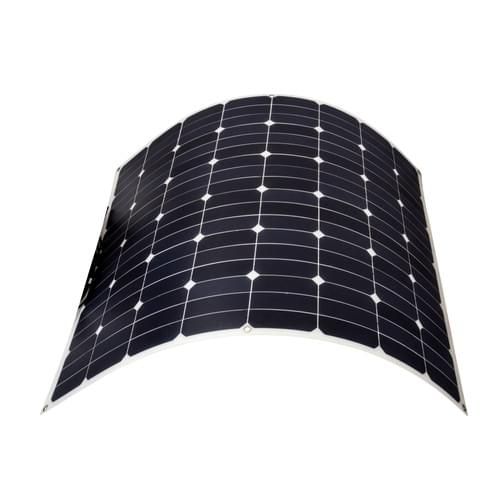

Semi-Flexible Solar Panels can be bending angle up to 30 degrees
It is capable of a wide range of applications and suitable for RV,car,caravans,boat,residential rooftop,yachts,tents,camper,trailers,cabins and other irregular curved surfaces.
2)Light-Weight&easy to install
It is only 0.1inches(3mm) thick and weighs only 2.5kg.Compared with ordinary solar panels,semi-flexible solar panels are thinner and lighter.It can significantly reduce the cost of transportation.Meanwhile,with 6 stainless eyelets,It is also easy to install and remove.because of their lightweight and flexible design.
3)Waterproof&Dustproof
Its surface is made of ETFE and can be durable,anti-erosion,dustproof.Therefore,its surface is easy to clean.Waterproof IP65 rated junction box with diode can make charger safer when using outdoors.
4)Top Quality&High Efficiency

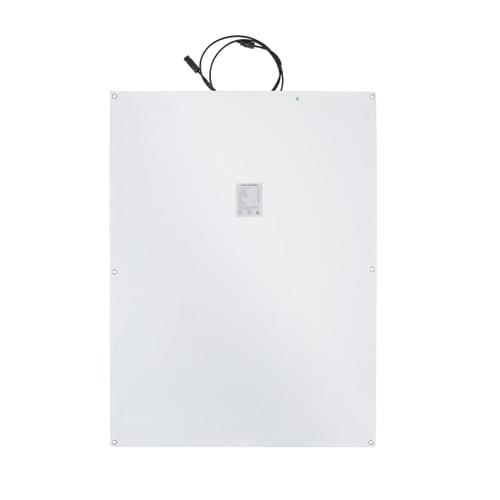

With excellent production technology,this product has quality assurance.The ETFE surface's material is ultra-thin laminated,which has good light transmission.The backsheet is made of PET,which has the effect of heat dissipation and protection.Meanwhile,The conversion efficiency can up to 22%.
Semi-Flexible Solar Panels can be bending angle up to 30 degrees
It is capable of a wide range of applications and suitable for RV,car,caravans,boat,residential rooftop,yachts,tents,camper,trailers,cabins and other irregular curved surfaces.
2)Light-Weight&easy to install
It is only 0.1inches(3mm) thick and weighs only 2.5kg.Compared with ordinary solar panels,semi-flexible solar panels are thinner and lighter.It can significantly reduce the cost of transportation.Meanwhile,with 6 stainless eyelets,It is also easy to install and remove.because of their lightweight and flexible design.
3)Waterproof&Dustproof
Its surface is made of ETFE and can be durable,anti-erosion,dustproof.Therefore,its surface is easy to clean.Waterproof IP65 rated junction box with diode can make charger safer when using outdoors.
4)Top Quality&High Efficiency
With excellent production technology,this product has quality assurance.The ETFE surface's material is ultra-thin laminated,which has good light transmission.The backsheet is made of PET,which has the effect of heat dissipation and protection.Meanwhile,The conversion efficiency can up to 22%.
More Details
Maximum Power(Pmax):200W
Max Power Voltage:17.8V
Max Power Current:11.24A
Open-Circuit Voltage :21.6V
Short-Circuit Current:9.26A
Maximum System Voltage:60V
Temperature Range:-40℃~85℃
Power Tolerance:± 3%
Standard Test Conditions:1000W/m2, AM1.5, 25°C
Solar Cell:Mono-Si
Product Dimension:1570*770*3mm
Weight:3.75kg
